- Rugged construction for large
volume production of braille.
- Low noise.
- Prints both 6 and 8 dot Braille.
- Modular design, easy to service.
- Uses standard fanfolded paper in a varity of formats.
- Prints simultaneously on
both sides of paper.
- 2 years warranty on parts.
- Adjustable speed between 600 and 900 pages per hour continuous printing.
- High braille quality. Each
document is an original.
- The printing system is based on
Braillo 200 with more than 15
years of experience.

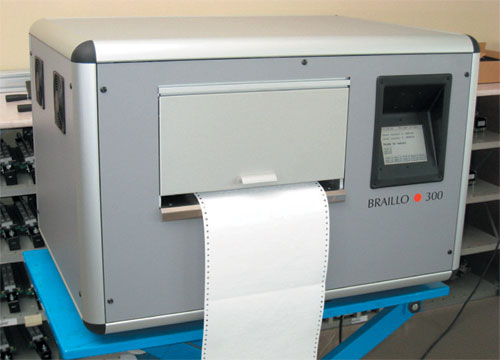

Technical Specifications Braillo 300
Format:
Char. per line: 10 - 42 characters
Sheet length: 4 - 14 inches
Sheet width: 140 - 330 mm
Page layout: Normal / Z-fold
Page 1 up / down
Printing Mode: Single / Interpoint
Page Length: No form feed / Normal / Normal -1 to -9 lines
Braille cell: Standard medium 6 or 8 dot
Line spacing: From 0.3175 to 10.16 mm, Standard is 5.08 mm
Paper Weight: 120 - 180 g/m², Recommended 150 g/m²
Printing Speed: 200 to 300 characters per second,
approx. 600 - 900 printed pages per hour.
Electrical:
Voltage: Single phase 230V (+/- 10 %), 50/60Hz
Current: Approx. 4 A max
Fuse Printer: 10 A
Power: Approx. 1000 W max
Communication with the computer:
USB
Ethernet
Serial om RS 232 C (9 pin D-sub male).
Environment:
Temperatures: 15 - 30°C (60 - 86°F)
Rel. Humidity: 40 - 60%
Measurements:
Height: 650 mm
Width: 700 mm
Length: 920 mm
Weight: 145 kilos
The manufacturer reserves the right to change the specifications without further notice.
Produced by:
BRAILLO NORWAY AS
P. O. Box 447
3101 Tønsberg, Norway
Phone: +47 33 00 28 70
Fax: +47 33 00 28 71
E-mail: braillo@braillo.no
Internet: www.braillo.com
