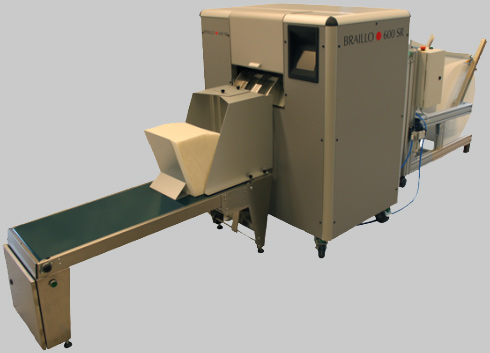

Braillo 600SR

• Rugged construction for large volume production of braille.

• Built-in Paper Cutter.
• Stacking unit designed for handling braille documents.
• Modular design, easy to service.
• Uses standard paper rolls up to 1 meter in diameter.
• Prints simultaneously on both sides of paper.
• 2 years warranty on parts.
• High speed, 1800 pages per hour continuous printing.
• High braille quality. Each document is an original.
• The printing system is based on Braillo 400 S with more than 15 years of experience..

  Technical Specifications Braillo 600SR

  Format:
  Char. per line: 10 - 42 characters
  Sheet length: 4 - 14 inches
  Sheet width: 140 - 330 mm
  Page layout: Normal / Z-fold, Page 1 Up / Down
  Printing Mode: Single / Interpoint
  Braille cell: Standard medium 6 dot
  Line spacing: From 0.3175 to 10.16 mm. Standard is 5.08 mm
  Paper Weight: 120 - 180 g/m², Recommended 150 g/m²

  Printing Speed: 600 characters per second, approx. 1800 printed pages per hour.

  Electrical:
  Voltage: Single phase 230V (+/- 10 %), 50/60Hz
  Current: Approx. 4 A max
  Fuse Printer: 10 A
  Power: Approx. 1000 W max

  Communication with the computer:
  USB
  Ethernet
  Serial om RS 232 C (9 pin D-sub male).

  Environment:
  Temperatures: 15 - 30°C (60 - 86°F)
  Rel. Humidity: 40 - 60%

  Measurements:
  Height: 1430 mm
  Width: 1027 mm
  Length: 3550 mm
  Weight: 300 kilos

  The manufacturer reserves the right to change the specifications without further notice.

  Produced by:

  BRAILLO NORWAY AS
  P. O. Box 447
  3101 Tønsberg, Norway
  Phone: +47 33 00 28 70
  Fax: +47 33 00 28 71
  E-mail: braillo@braillo.no
  Internet: www.braillo.com
